Concert Staging, Inc.

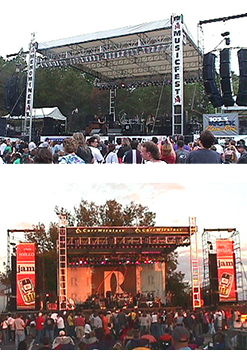

was formed in 1983 with an original roof design taken from a Morpheus Lighting system and made bigger and stronger to create a perimeter hung, flat roof system. The unique aspect of the CSI roof is that whatever load is put on it we can raise and lower it when necessary. It also can tilt front to back or vice-versa depending on the wind/rain direction.
The best part about a Concert Staging system is that our on-site technicians have over 100 years of combined experience to work with the event and the artist for the best possible show.
INSURANCE: $5,000,000 liability coverage
Roof Specs
SIZE: 40 x 42
TRIM HEIGHT: 26’ (from stage deck)
ROOF UPRIGHTS: 4
CHAIN HOISTS: 4 2-ton Coffing Lifting Motors
GRID: 12” x 24” sq. tube 6061 alloy aluminum
CANVAS (SKIN): 14 oz vinyl flame resistant “Sunburst”
TIE DOWNS: 8 1/4 inch wire rope (90 degrees off each upright)
WEIGHT CAPACITY: 12000 lbs
WIND CAPACITY: 110 mph w/an interpolated velocity pressure of 33 psf
Audio Fly Bays
Scaffolding towers rated for 5000lbs per side
Tents
Waterloo Tent Straight top w/vinyl flame resistant Sunburst
